Factory offer optical Doublet achromatic lens with AR coating

FOB Reference Price:Get Latest Price
$1.00 - $99.00 / Piece | 5.0 Piece/Pieces (Min. Order)
Material:
Glass
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 5000 >5000
Est. Time(days) 15 30 45 Negotiable
Customization:
dimension (Min. Order: 5 Pieces)
OEM customized (Min. Order: 5 Pieces)
Samples:
$10.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China
Brand Name:
Realpoo
Model Number:
ACH-RE
Usage:
ACHROMATIC
Structure:
Achromatic
Shape:
Spherical
Product name:
Factory offer optical Doublet achromatic lens with AR coating
Diameter:
0.5-500mm
Tolerance:
0.1mm ~ +/-0.05mm
Surface quality:
20/10---80/50
Surface flatness:
Lambda/2~lambda/4
Chamfer:
0.25mm *45 Degree
Coating:
Customer Request
Certificate:
TUV Rheinland
Product Certification certification
CE Certified.
Valid from 2018-08-28 until 2049-12-31
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Protective Packing
Port
FOB Changchun
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 5000 >5000
Est. Time(days) 15 30 45 To be negotiated
Video Description
Product Description
Achromatic lenses are a combination of a positive low refractive index (corona crown ) and negative high refractive index (flint). Compared with monolithic singlet lens the doublet design can provide users with additional design freedom and further optimize the performance of the lens. Therefore, the advantages of achromatic lenses are more significant than those of single lenses with equal diameter and focal length.
Achromatic Lenses are used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.
We are verified supplier by TUV Rheinland.

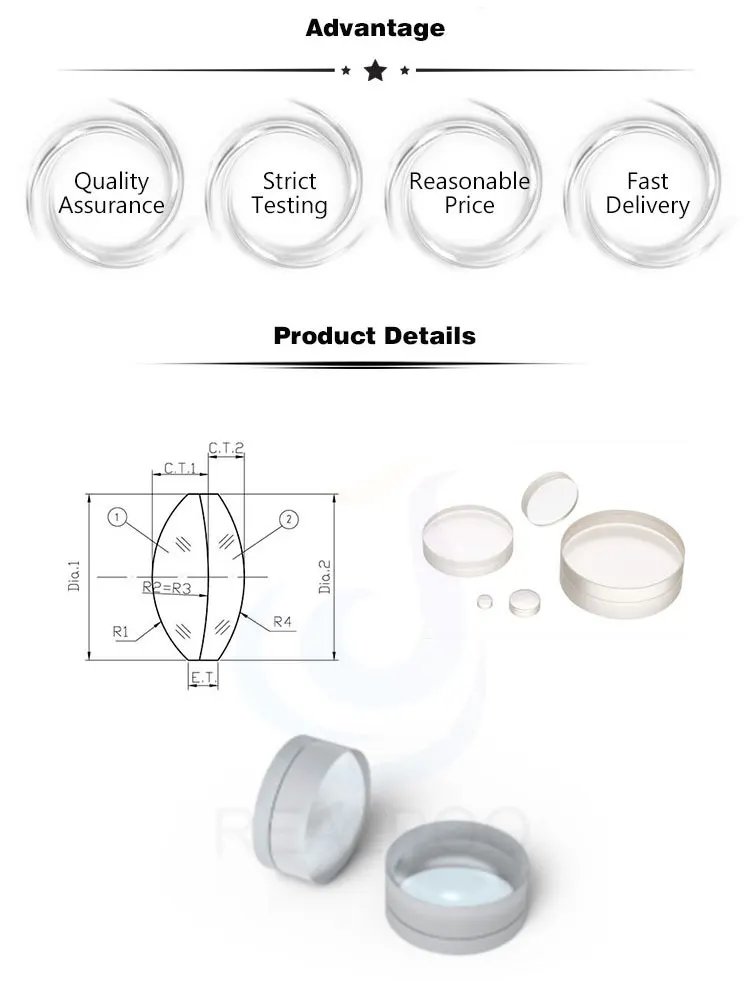

Product Name
Achromatic lens
Material
Equivalent optical glasses
Tolerance
+0.0,-0.025
Centration
3 arc minutes
Surface precision
λ/4 at 632.8 nm
Surface Quality
40/20 scratch and dig
Clear Apeture
>90%
Protective Bevel
0.25*45degree
Coating
Upon your application
The usage of Achromatic lenses
Achromatic lenses are designed to specifically function within the infrared, visible,or ultra-violet wavelength ranges,and they are not symmetric devices. They must be installed with the correct front-to-back orientation (thicker element usually faces the eyes) if installed incorrectly.with the lens orientation installed backwards the result will be extensive distortion and aberration.Optical glued lens are supplied coated or with a single layer anti-reflection coating suitable for the visible (400 - 600 nm) or the near infra-red (600 – 1200 nm).

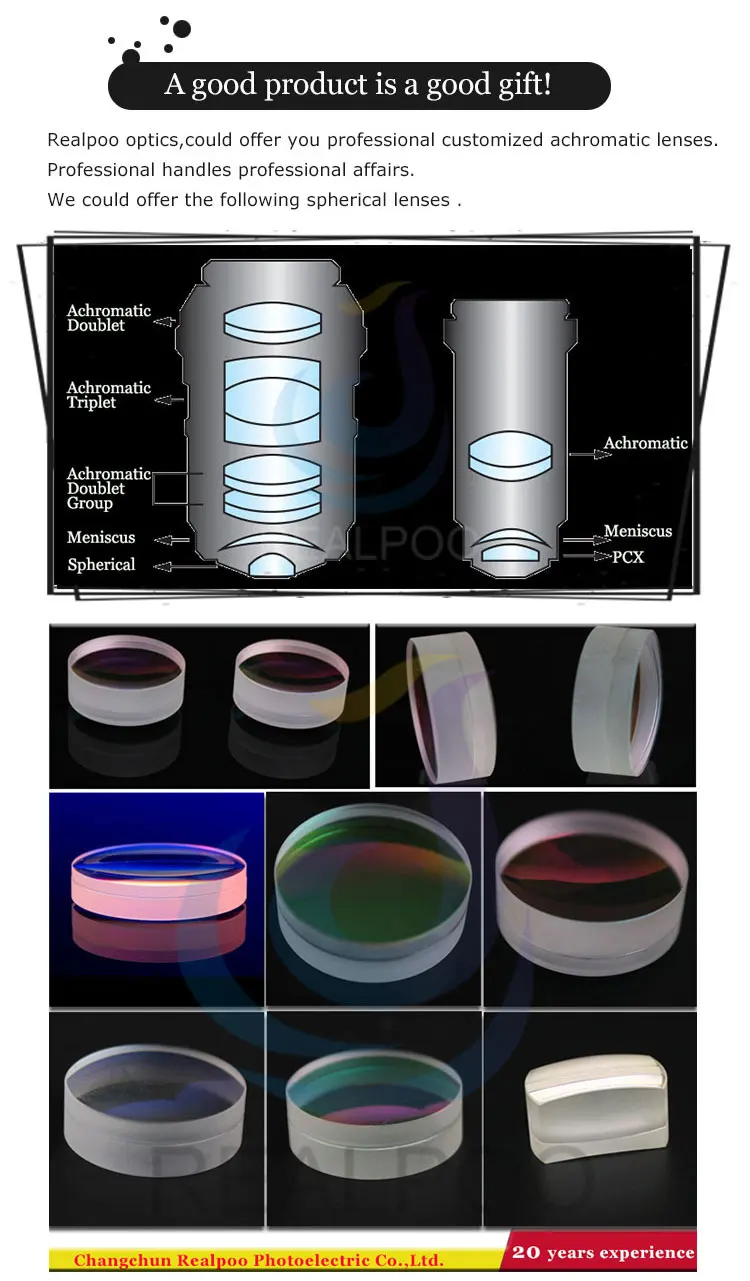

  • The types of achromatic lens

An achromatic lens comes in a variety of configurations, most notably, positive, negative, triplet, and aspherized. It is important to note that it can be a doublet (two elements) or triplet (three elements); the number of elements is not related to the number of rays for which it corrects. In other words, an achromatic lens designed for visible wavelengths corrects for red and blue, independent of it being a doublet or triplet configuration.

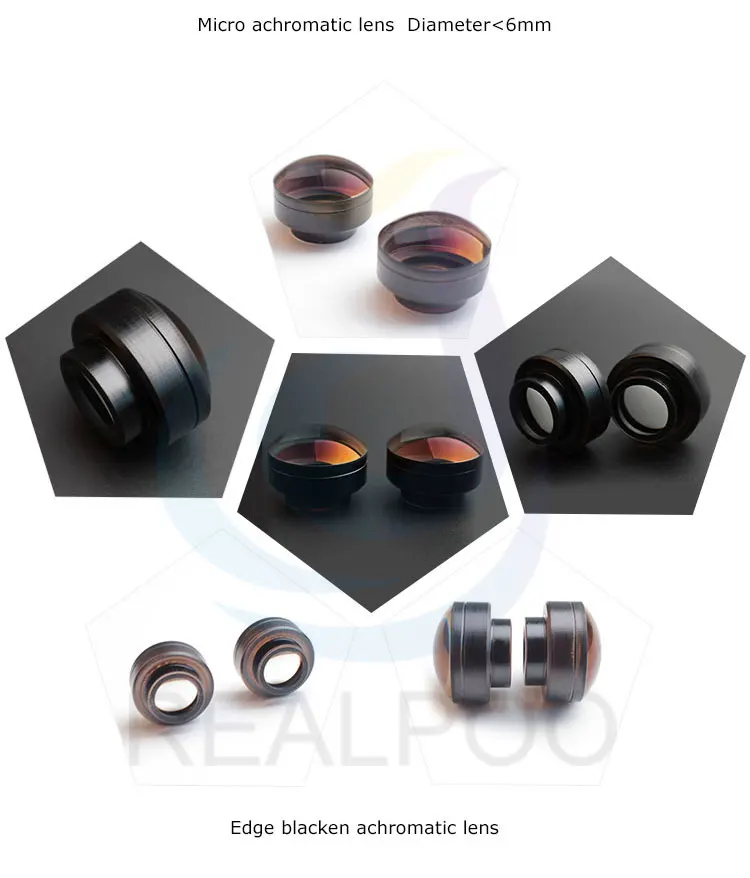

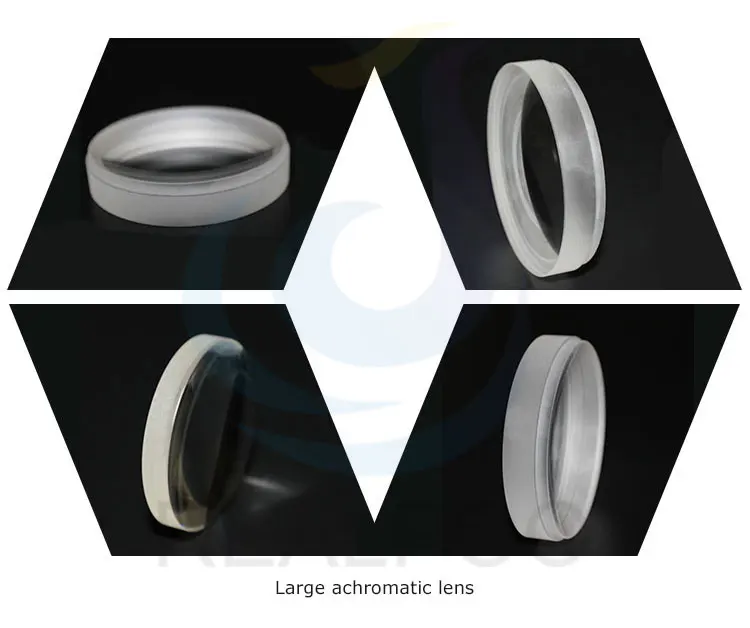

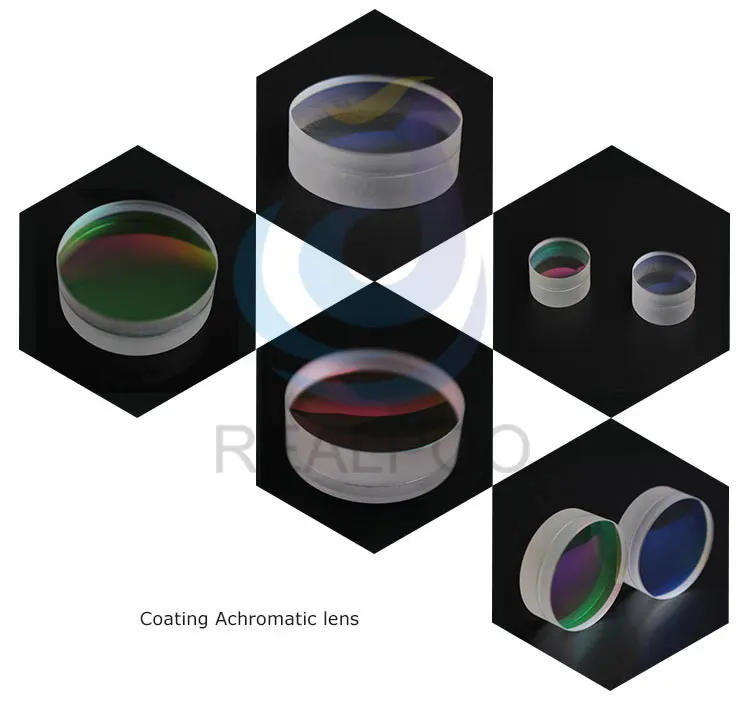

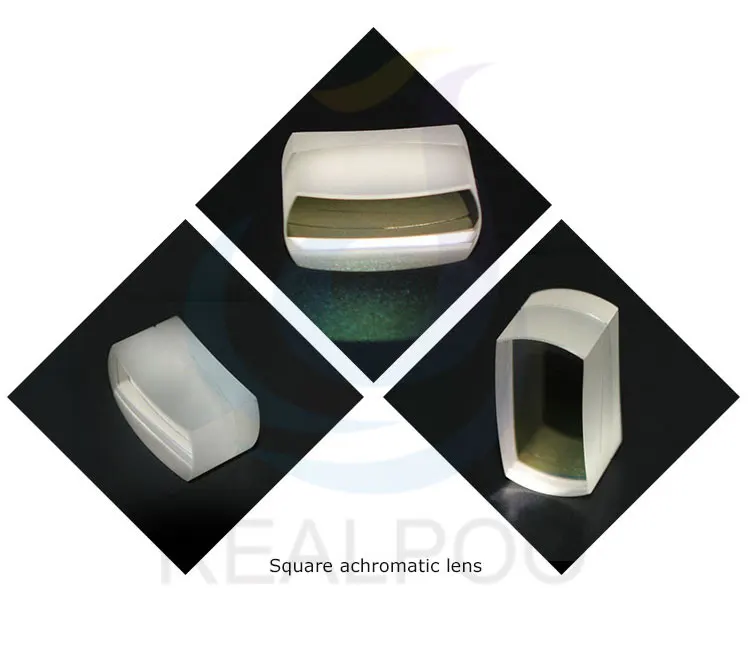

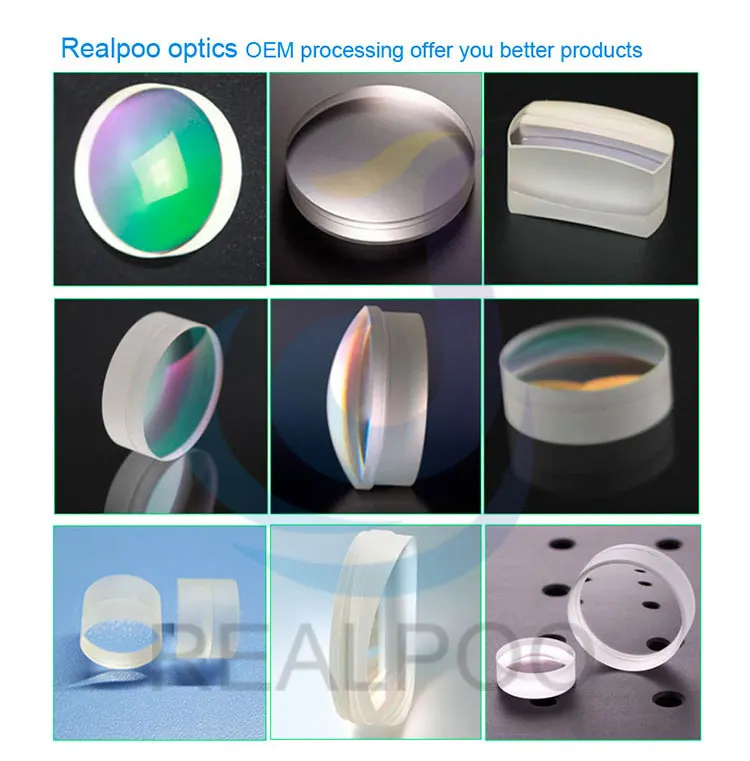

Detailed Images
We can offer custom plano convex lenses to meet your requirements or alternatively edge stock lenses for a quick turnaround.
Contact us to enquiry now!
Size Information
Achromatic lens in stocks!
We accept sample order and tested sample and processed.
Diameter(mm)
Material
Focal length(mm)
Coating
6mm to 10mm
BK7&ZF2 OR ZBaF20&ZF6
8.98mm/47.24mm/19.2mm/24mm/-15.05mm/12.5mm/33mm/30mm/24mm
400-700nm AR coating or 0.75-1.05μm AR coating
11mm to 20mm
BK7&ZF2
-89.45mm/21.5mm/120.26mm/100mm/263mm/125mm/90mm/80mm/40mm/26mm/31mm/150mm/50mm/40.22mm/95.8mm/40mm/50mm/100mm
400-700nm AR coating
25.4mm
BK7&ZF2
50mm/100mm
400-700nm AR coating
30mm
N-BK7
200mm/100mm/77mm/50mm/150mm
400-700nm AR coating
We accept sample order and tested sample and prcessing.
N-BK7
15 to 100
upon your request
25.4
N-BK7
30 to 125
AR 650-1100nm
40
N-BK7
125
AR 400-700nm
Related Products
Packing&Shipping
As a professional supplier of lenses in China, Realpoo optics produced both standard types and custom achromatic lenses for decades. We have a great deal of experience in production and also exert stringent quality control for the whole fabrication process below.
Professional Packing!!!
After Sales Service
What Can I help you?
Sample order accept Batch quantity could be deliveried faster
Better price in the market average
Offer the product test,design and process
Make sure the quality and service
Positive dealing with the questions or problem
7*24 hours onlie customer service

Welcome to our factory!
Company Introduction

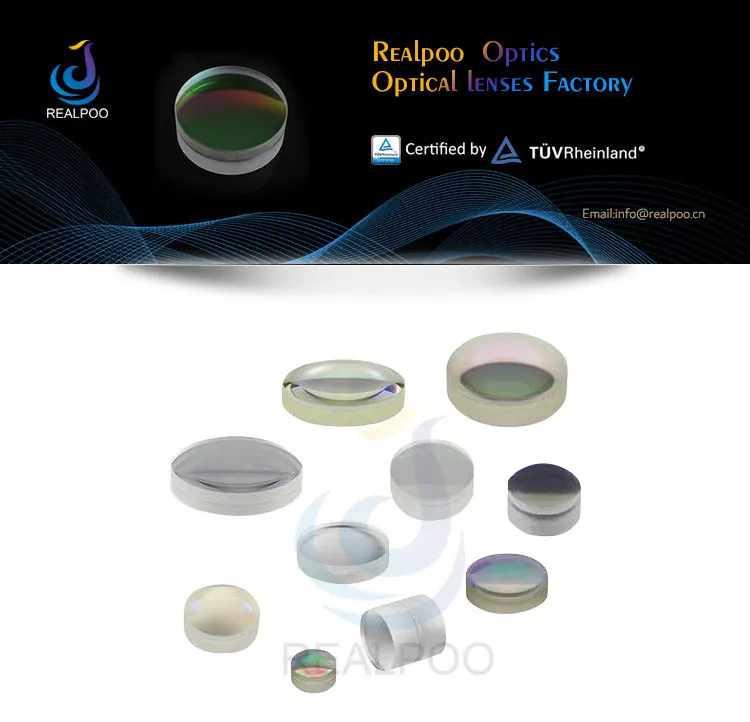

Realpoo Optics manufactures high quality achromatic lenses; positive,negative,triplet achromatic lenses. These all-purpose lenses are available in a wide variety of sizes, substrates, and coatings, and can be customized for your application.
